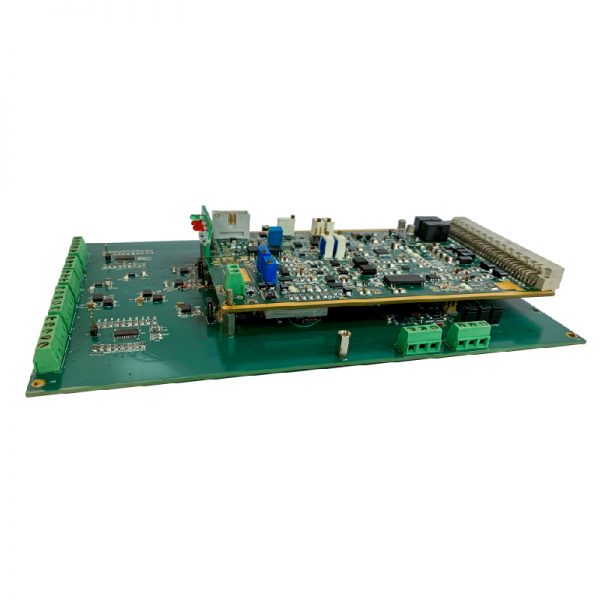

Automated PCB Test Jig
PCB Test jig is for functional testing of the Assembled PCB. This is a custom made PCB which will have spring contacts to acquire the Voltage, current, freq, Digital IO or any other signal etc. from the PCB under testing. The acquired signal will be displayed on the PC front end. Test sequences can be defined to the PCB. This will speed up the testing of assembled PCB.
